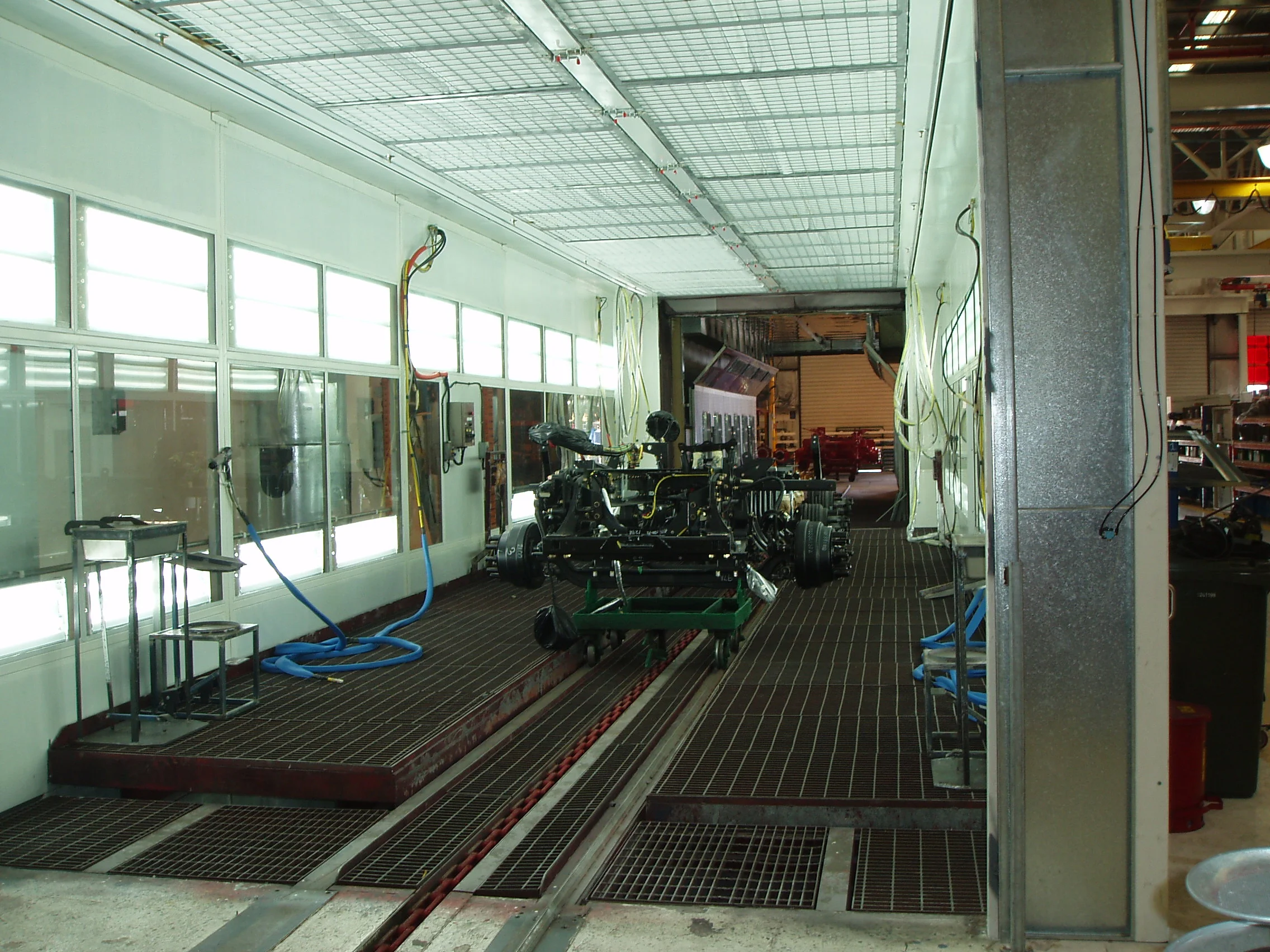

Paint finishing industries require spray booths that suit their different painting requirements. Some require sophisticated booths that are fully integrate in to their production and management systems, while other need simple, standalone booths.

DRYSYS has a long and successfully history of providing many different types of spray booths to a variety of industries, including:

  • Automotive,
  • Aerospace,
  • Aviation,
  • Rail,
  • Transport,
  • Manufacturing.

We offer a full range of energy efficient spray booths, designed with the latest advances in technology. Each spray booth is custom designed, built and tested to comply with the client’s requirements and current Australian standards, legislation and EPA guidelines.

DRYSYS Spray Booths options:

  • enclosed, tunnel or open face;
  • inline production, batch or standalone type;
  • full, floor, semi or cross draft;

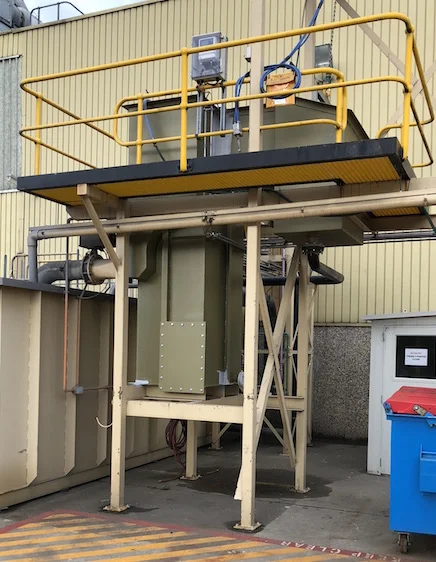

  • water scrubbing or dry filters;
  • PLC operating software and touch screen interface, or push button relay based electrical controls for small scale booths.  The PLC controls and reduces the spray booths operating costs;

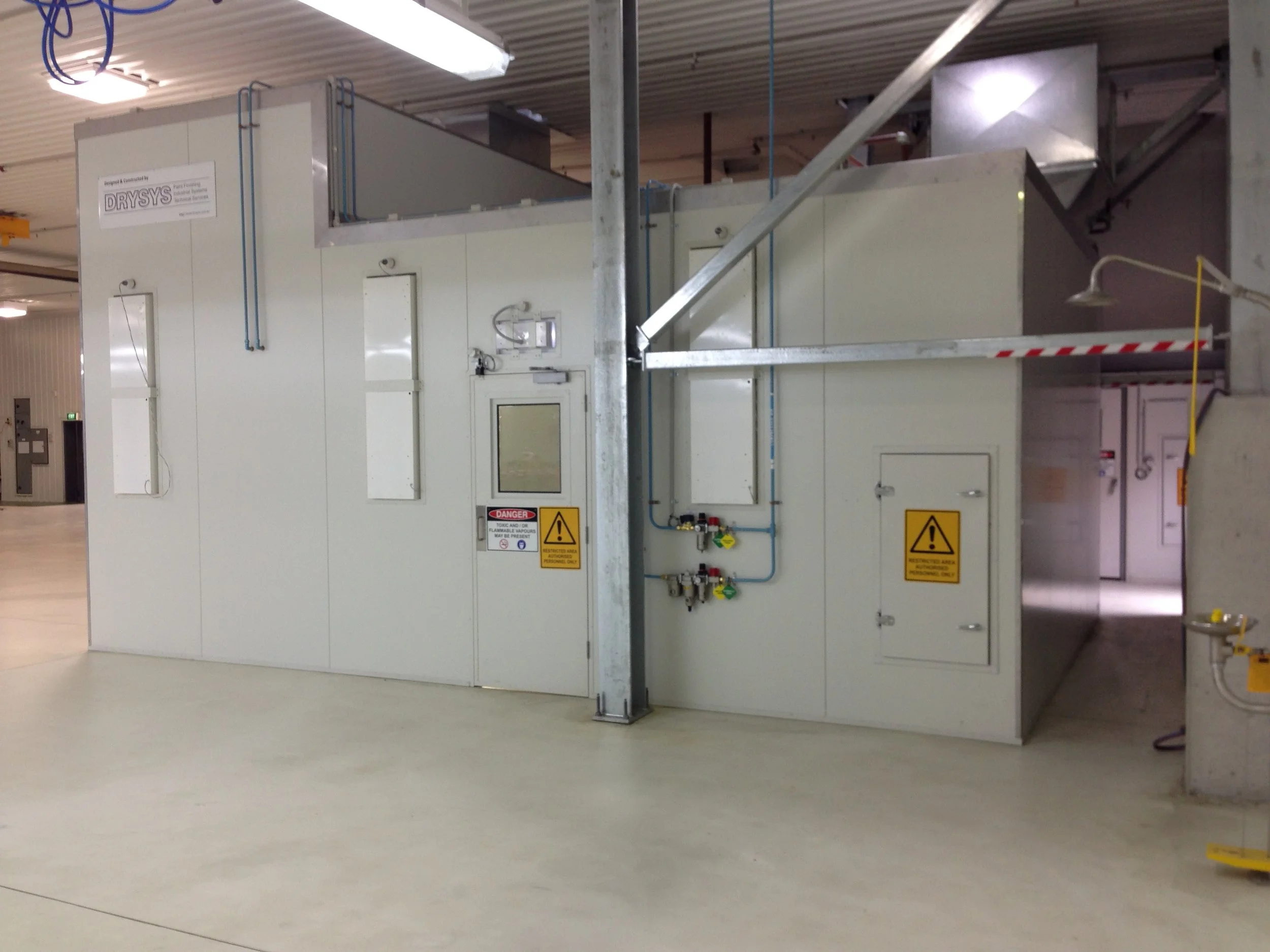

  • spray, flash-off, bake, cool-down and/or energy-save modes;
  • condition & controlled air supply (temperature & humidification control);
  • stainless steel, galvanised or insulated panel construction;
  • breathing & interlocked spray compressed air;
  • variable speed drives on supply and exhaust fans;
  • robotic or manual painting applications;
  • solvent & water based paints compatible;
  • high lux lighting levels;
  • full documentation provided;


Paint shops of all sizes utilise a variety of preparation and work booths for all the different processes required, such as:

  • preparation,
  • dry/wet sanding,
  • sealer,
  • inspection,

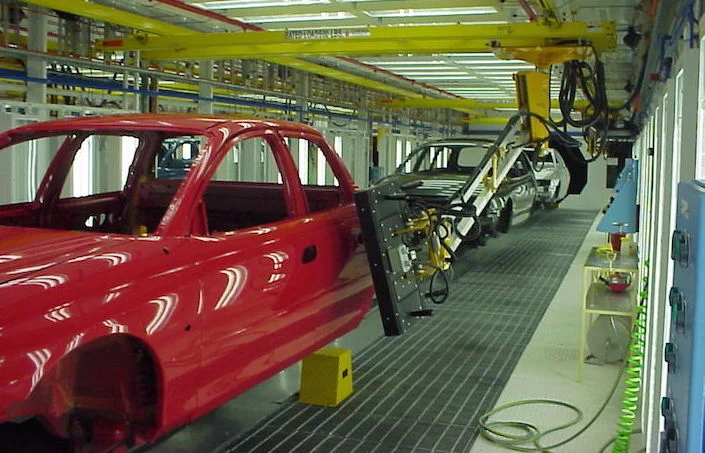

  • spot repair,
  • waxing,
  • black-out,
  • tack-off, etc.

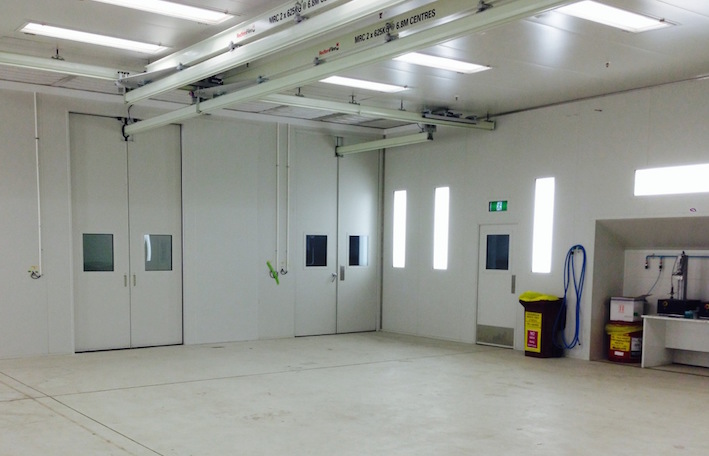

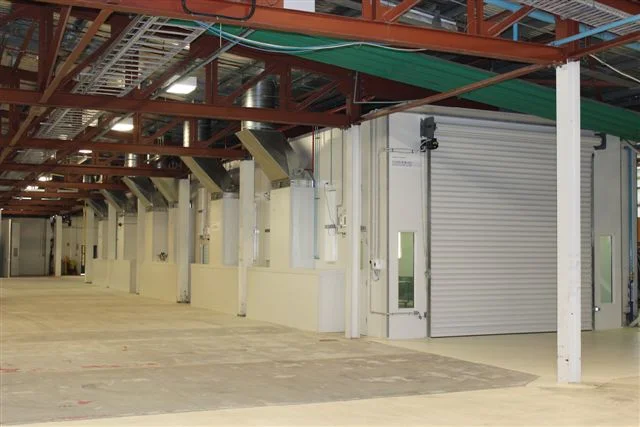

DRYSYS design and construct a full range of preparation booths and work bays to suit the client's specific requirements.  They can be fully enclosed booths, open face styled booths, or curtained-off bays with filtered exhaust air extraction.

DRYSYS Preparation Booths & Work Bays feature:

  • PLC operating software and touch screen interface, or push button relay based electrical controls for small scale booths.  The PLC controls and reduces the energy consumed by spray booths;
  • enclosed, open face or curtained bays;
  • inline production, batch or standalone;
  • exhaust air filtering;
  • controlled & conditioned air supply;
  • full, floor, semi or cross draft;
  • breathing & tool compressed air;
  • high, medium and/or low level lighting;



Paint Mix Rooms and Hazardous Storage are vital for a painting shop. DRYSYS designs and constructs paint mix rooms of all sizes, to store and decant paints and solvents.

There are many hazards associated with paint mix rooms and hazardous storage. Our engineers carefully design the systems in accordance with Australian standards, legislation and select the appropriate explosion proof rated equipment for the hazardous area classification.

The supply and exhaust air ventilation forms an integral part of the design and safe operation. Supply air is filtered and temperature control (heating and/or cooling) be can provided.

The controls of the paint mix room can be incorporated in to the spray booth's PLC operating software;  a stand along touch screen PLC based control; or a push button relay based electrical control panel can be provided.

All our Paint Mix Rooms and Hazardous Stores are fully tested once built and are approved by the relevant local authority.

Additional related equipment can also be provided, such as Ventilated Work Benches, Breathing Air and Gun Wash Stations.






DRYSYS provides a variety of paint curing ovens for the Aerospace, Automotive, Manufacturing, Rail, Transport and other Paint Finishing industries.  All our ovens are designed to suit the customers specific requirements and can be batch, straight through, u-turn, or camel back styled ovens.

DryCure Ovens

DryCure ovens are an innovative energy efficient heating process for curing a variety products, to temperatures of up to 345 degrees C.

DryCure technology offer huge cost saving benefits such as, curing timings reduced by up to 65% and energy costs reduced by up to 75%.

They are modular designed and factory built for quick installation and handover.  Infrared gas heaters are arranged inside the oven to suit the particular product envelope.  A multi-angled, highly reflective internal skin complements the IR heaters by focusing the heat on to the product.  The IR gas heaters are controlled individually, or in banks (known as zones) to regulate the oven or zone temperatures.  Control of the zones is by a PLC with a touch screen interface optional.

The DryCure technology can also be applied to spot repair stations.



Traditional Ovens

DRYSYS design and construct batch, straight through, camel back, or u-turn styled ovens to suit the client’s product and environmental requirements.

Depending on the product and heating requirements, industrial ovens can be supplied with direct or indirect gas burners or electric element heaters.

Integrated controls are standard for all our ovens. They can comprise of a PLC with touch screen interface, or push button relay based electrical controls.

Other options include radiant walls, for contamination sensitive products, and energy saving Turbulator technology, which reduces curing times and provides a very accurate and stable oven temperature.




Corrosion protection is an essential step in the manufacturing of car bodies or many metal products. The majority of corrosion protection coatings require the thorough cleaning of all dirt, oils, and contaminants from the product surface and treating the product surface with phosphate or conversion coatings to prevent corrosion and increase paint adhesion.

Washing and corrosion protection solutions can be developed for any process, product and production rate - utilising the latest technologies.

DRYSYS offers spray / dip pre-treatment and electro-coat systems, including washers, sludge removal, waste water treatment, DI/RO water production and materials handling to ensure that the product is coated to the highest standard.




We provide intuitive control systems that are user friendly and easy to navigate on all our facilities.

They control the entire facility with a single touch and ensure it is operating efficiently and productively, by automatically changing various outputs - significantly reducing energy (operating) costs.

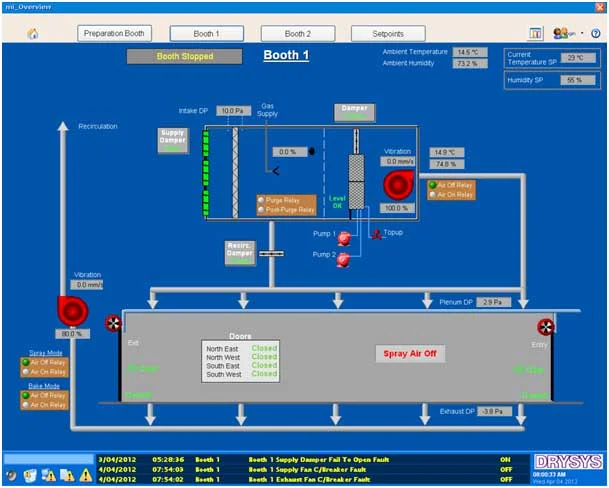

The control philosophy can allow for automatic control of the complete facility. The operator control screen interfaces with a PLC to provide automation, graphics, alarms and temperature control.

Our Automation & Control knowledge encompasses the following:

- Specification and design
- PLCs
- RTUs
- SCADA / HMI systems
- Industrial networks
- Data Historian
- Integration to BMS (Business Management Systems)
- Safety systems
- Chemical dosing & control systems





Areas of Expertise

DRYSYS is a diverse industrial design & construct company, providing unique one-stop, end-to-end engineered solutions.

We specialise in the turnkey delivery of complex industrial projects, development of special-purpose equipment and the provision of project management and engineering services to all industry sectors, including automotive, aviation, aerospace, defence, manufacturing, paper & pulp, rail and transport.

Paint Finishing

DRYSYS are the market leader in the design and construction of production paint finishing facilities including:
- custom spray booths,
- pre-treatment & electrocoat plants,
- preparation & work booths,
- paint mix rooms,
- curing ovens,
- hazardous storage,
- electrical control & automation.

Fluid Systems

DRYSYS design and construct complex fluid & piping systems for all industry sectors including:
- heavy washing facilities (train, truck, bus & car),
- pre-treatment process plants,
- fluid process systems,
- chemical dosing systems,
- vacuum systems,
- industrial services,
- electrical control & automation.

Controlled Environments

DRYSYS provides innovative turnkey manufacturing and contamination control solutions for all industry sectors, including:
- cleanrooms,
- hazardous storage,
- contamination & fume control,
- industrial ovens,
- industrial air systems,
- air supply houses & heater boxes
- conveyor systems,
- electrical control & automation.
